1、全自动前倾式洗脱机采用电脑控制系统,可实现自动加水、预洗、主洗、漂洗、中和等主要程序,内储30种洗涤程序可供选择,并备有5套常用自动洗涤程序。
Computer controlled system, Liquid crystal display. Being able to automatic pouring water, prewash, main washing,rinsing, high speed drainage main program. Set up 30 types of washing program available, with 5types commonly used automatic washing program
2、全自动前倾式洗脱机采用独特的下悬浮减震设计,减震率可达98%,超低震动,提高了设备高速运转中的稳定性。
Unique structure of suspension and shake-proof design,decreasing shaking rate to 98%, Ultra-low shaking. Improvesgreatly the stability during the high speed rotary.
3、高品质的变频器,保证了最低转速和最高转速,既保证了洗涤质最,又提高了脱水率。
High quality of frequency converter assures the minimum rotary speed and maximum rotary speed. It's not only assures the washing quality but also improve dehydration rate.
4、采用高品质轴承油封,能承受高强度的轴承座设计,保证了设备在大负荷工况条件下的正常使用。
Adopting high quality of bearing oil seal can bear high strength bearing design.Assured normal operation under
heavy load condition.
5、大小适中的不锈钢装衣门设计,自动门控装置,既提高了使用中的安全性,又满足了装载更多布萆的需求。
Reasonable size of stainless door design, Automatic door control device, Not only assured the safety during the
operation but also meet the needs of loading more cloth grass.
6、因洗涤中的强酸、强碱、高温等恶劣使用状况,元程全自动前倾式洗脱机在凡接触水处都采用特殊喷锌防腐处理,保证了机器耐用性和布草的安全性。
Because of the bad condition of strong acid, strong alkali and high temperature.Where touch with the water at
all using special spraying zinc anti-corrosion treatment, Ensure the machine durabilityand the safety of the clothes.
7、大口径的进水口、自动加料系统、可供选择的双排水等设计,帮您缩短了洗涤时间,提高了效率,降低了成本。
Large diameter water inlet.Automatic feeding system.Selection of double drainage design reduce the washing time,
improve working efficiency and save the cost.
SXT-A系列前倾洗脱机主要技术参数:
规格型号
Model &Specs
|
SXT-1000FQA |
工作电压(V)
Washing voltage
|
380 |
洗涤容量(kg)
Washing capacity
|
80-100 |
滚筒容积(L)
Revolver capacity
|
1000 |
洗涤速度(rpm)
Washer speed
|
32 |
均布速度(rpm)
Cloth rotary speed
|
64 |
中脱速度(rpm)
Medium spin drying rotary speed
|
335 |
高脱速度(rpm)
High spin drying rotary speed
|
650 |
取衣倾斜角度(°)
Take the angle
|
18 |
电机功率(kw)
Motor power
|
7.5 |
电加热功率(kw)
Electrc heating power
|
81 |
蒸汽压力(MPa)
Steam pressure
|
0.4-0.6 |
噪声(db)Noise
|
≤75 |
整机重量(kg)
Overall weight
|
3800 |

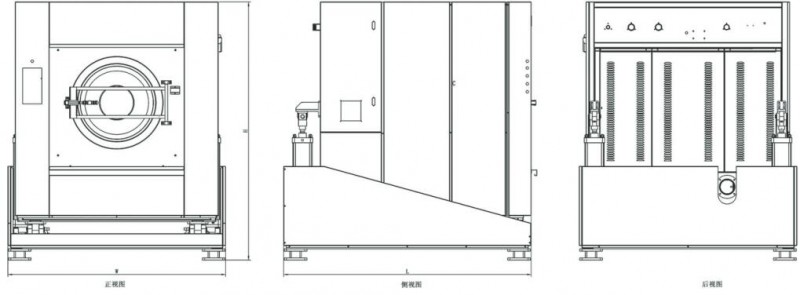

外形尺寸(mm)
Exterior dimension
|
2300*2235*1925 |
